FOLDABLE & DIVISIBLE
Eloflex Model : D2

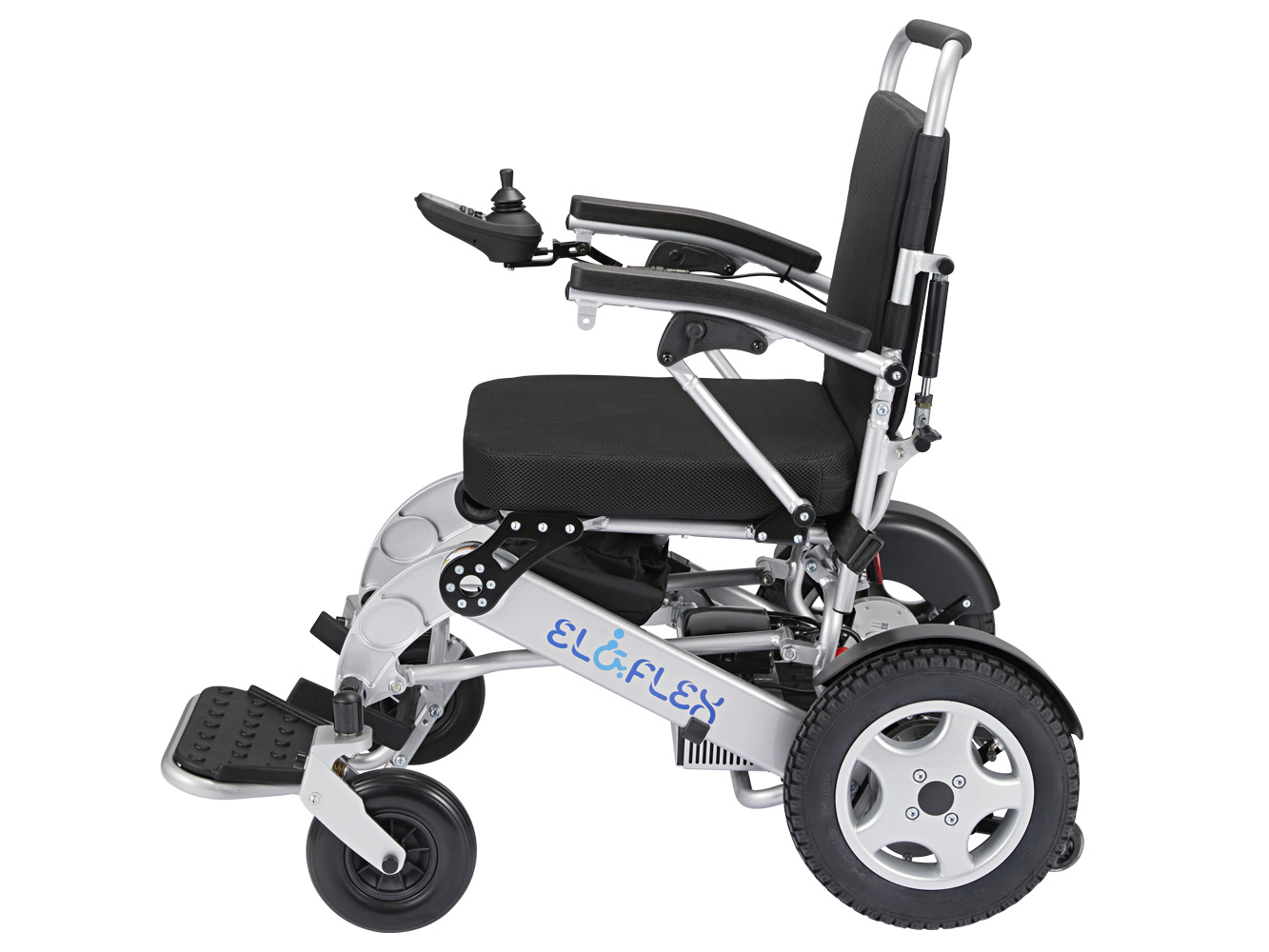

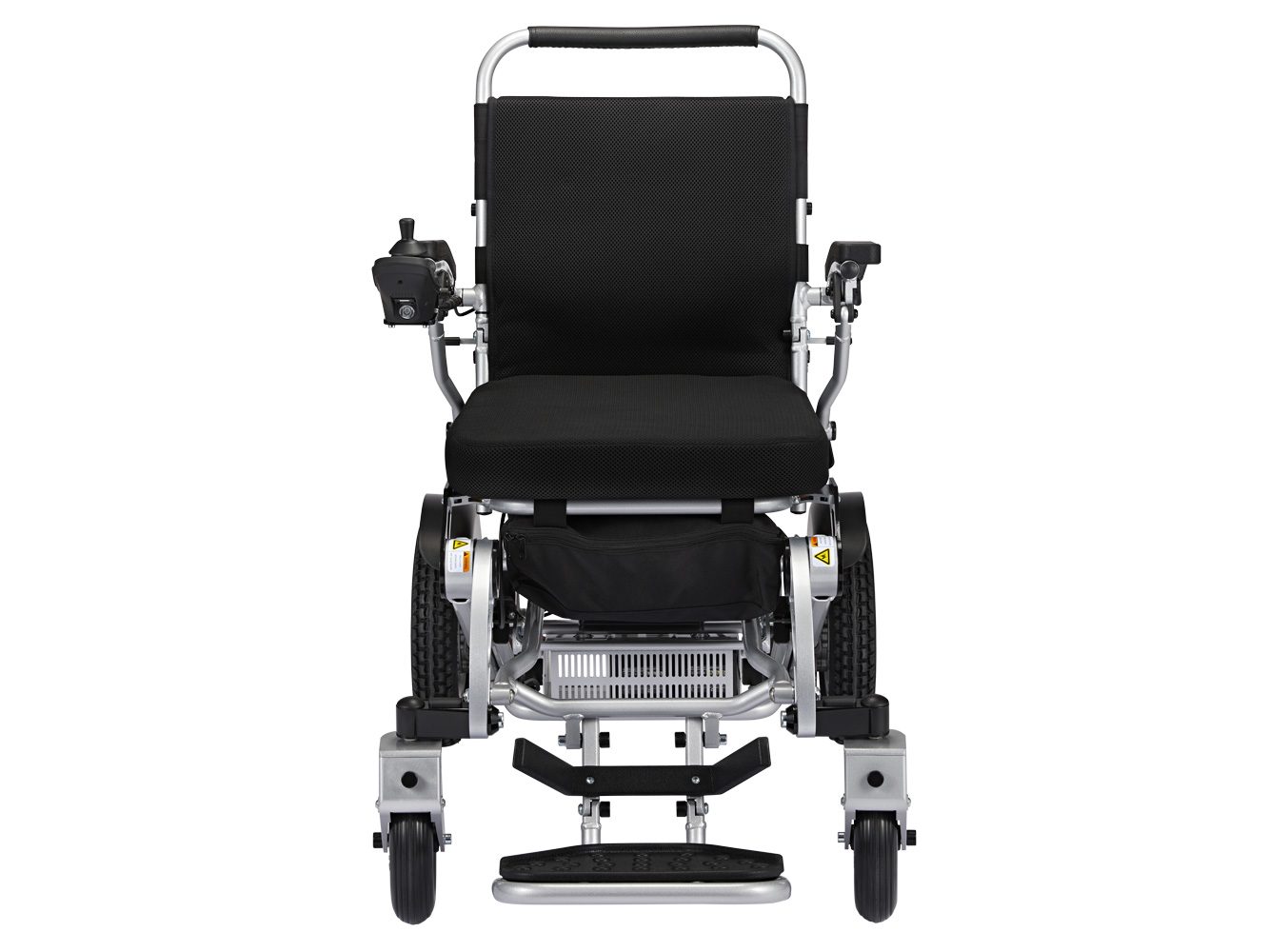

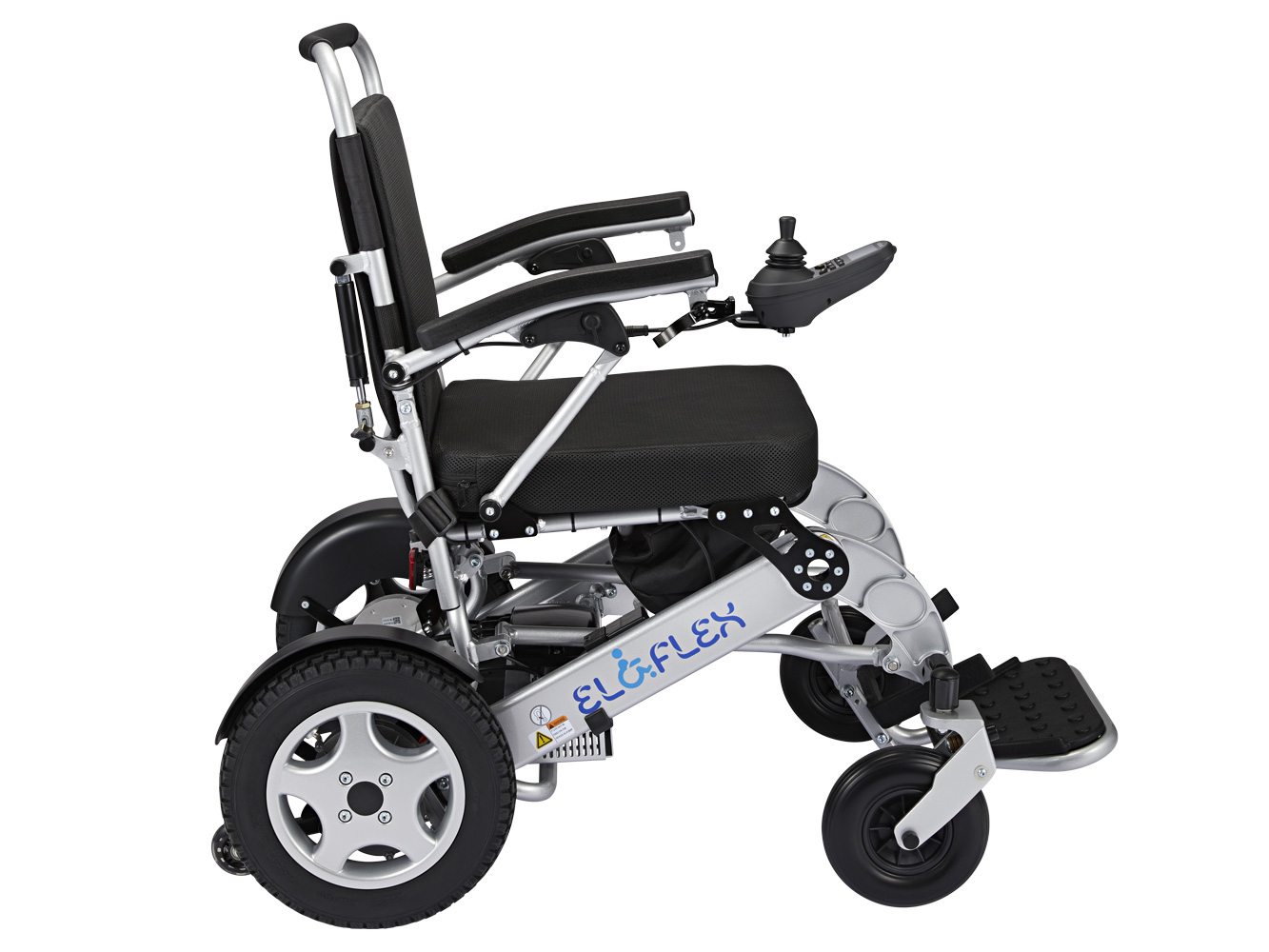

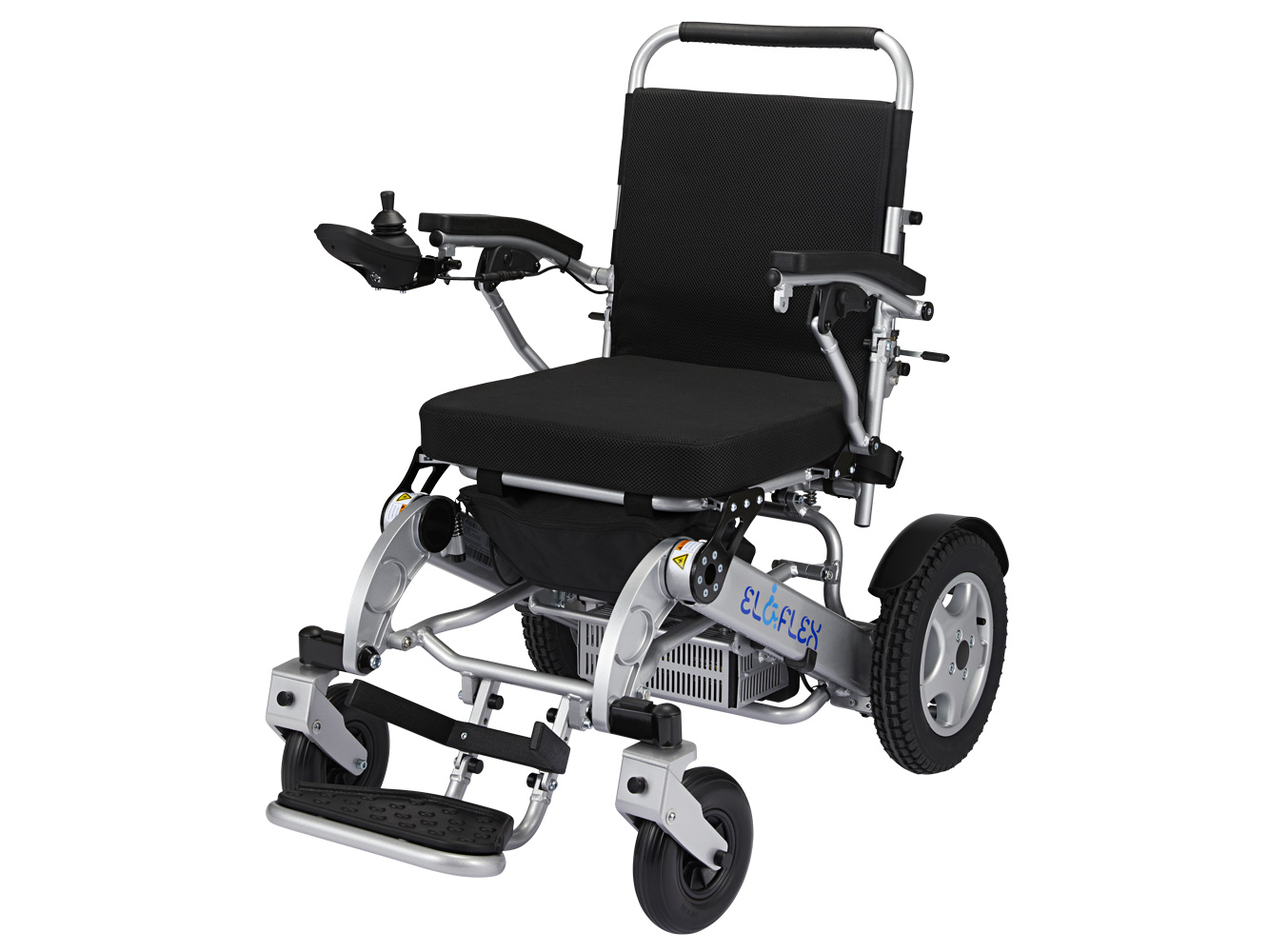

Eloflex D2 is an innovative foldable and divisible power wheelchair. It has the same flexible design as our other electric wheelchairs and with a smart function that allows it to be taken apart in two parts. It facilitates transport when the wheelchair is to be loaded into the car’s luggage compartment.
Model D2 fits users up to 160 kg and is comfortable and easy to maneuver. Eloflex D2 helps you live an active life with walks, trips and everyday excursions. You can easily fold it and divide it into two lighter parts when you need to transport your power wheelchair.
Thoroughly work has been put into ergonomics and usability. The smart joystick bracket can be folded down which you get closer to the edge of the table. The footrest can be folded away when you sit down or get up from the wheelchair. The large air-filled rear wheels and the spring-loaded damping in the front provide good shock absorption even on tougher surfaces. The two included batteries provide a mileage of 30 km (ie about 5 hours of driving). Model D2 also has room to expand to three batteries which gives you an additional 15 km mileage.
14 + 16
WEIGHT IN KG
30
RANGE IN KM
50
SEAT HEIGHT IN CM
160
MAX LOAD IN KG
250
EFFECT IN WATT
UNIQUE FEATURES

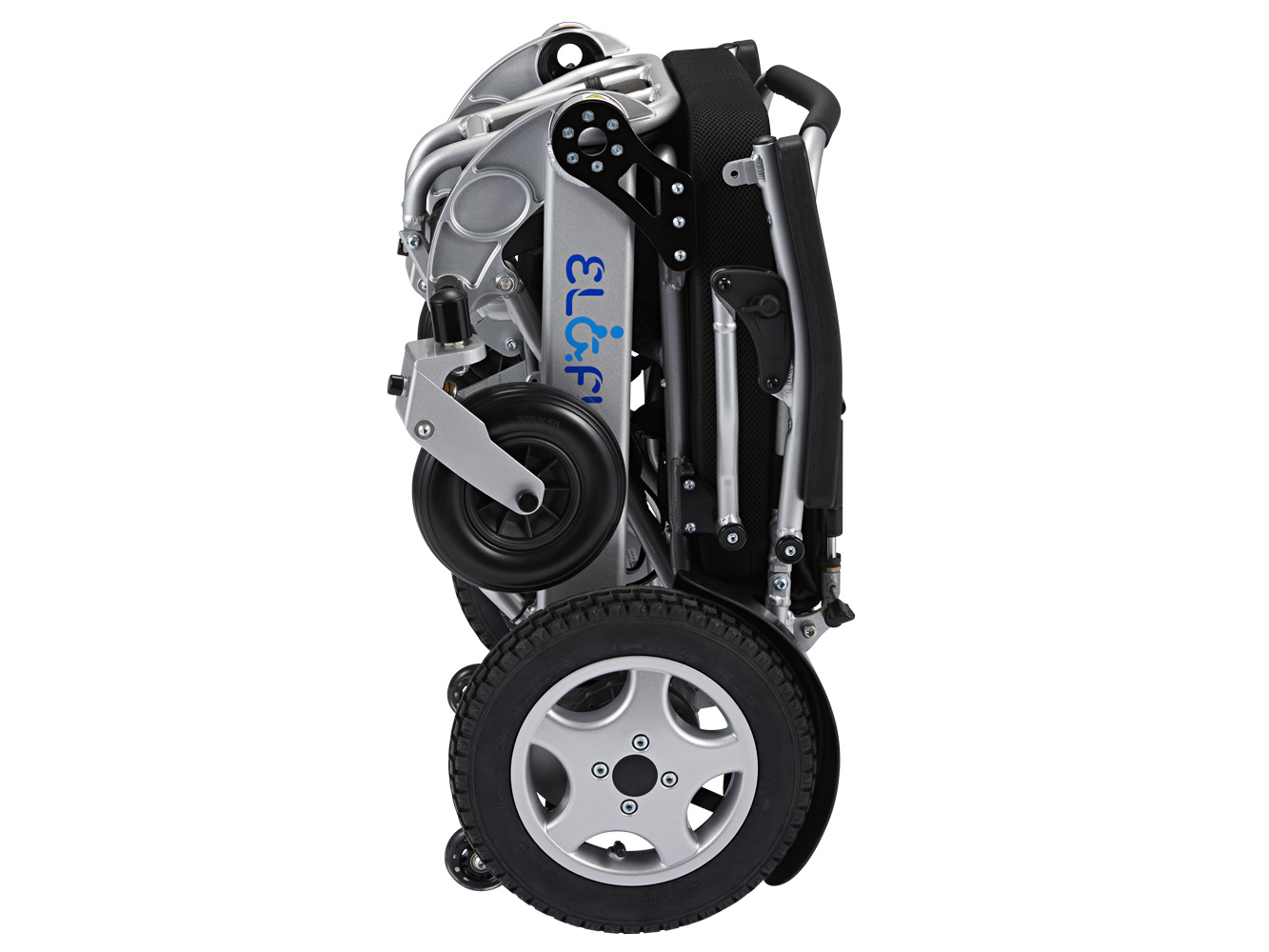

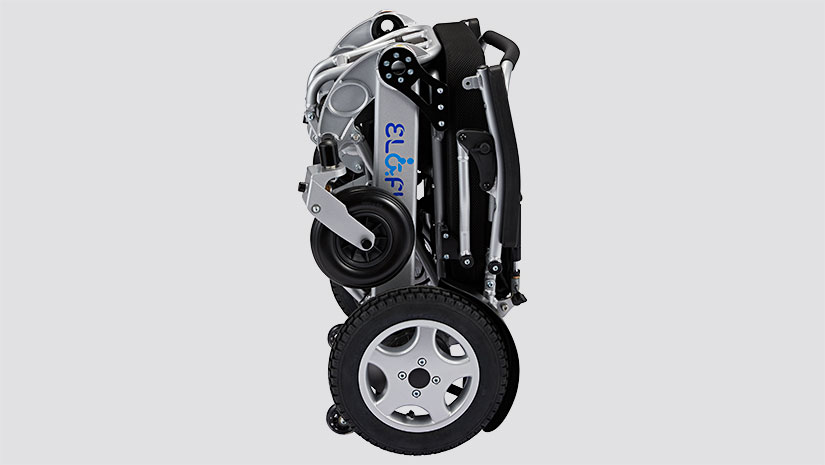

Foldable
The most unique thing about Eloflex models is that they can be easily folded in a few seconds. The compact format in combination with the low weight, thanks to the aluminum construction, makes it easy to take it with you in a car or on a flight.

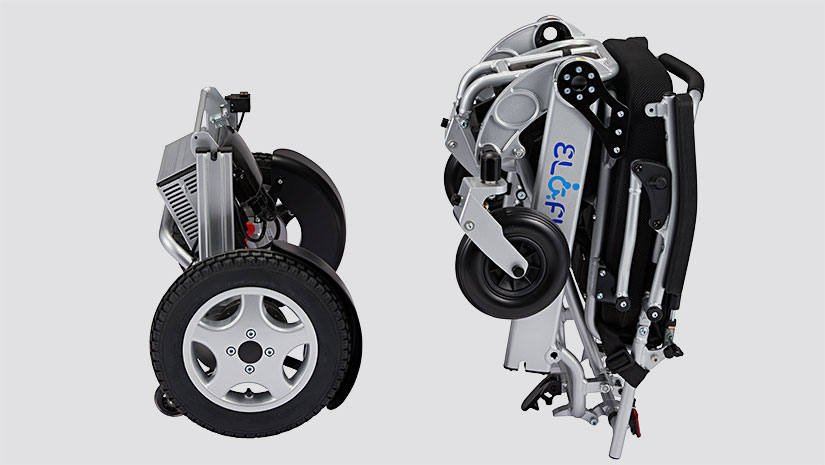

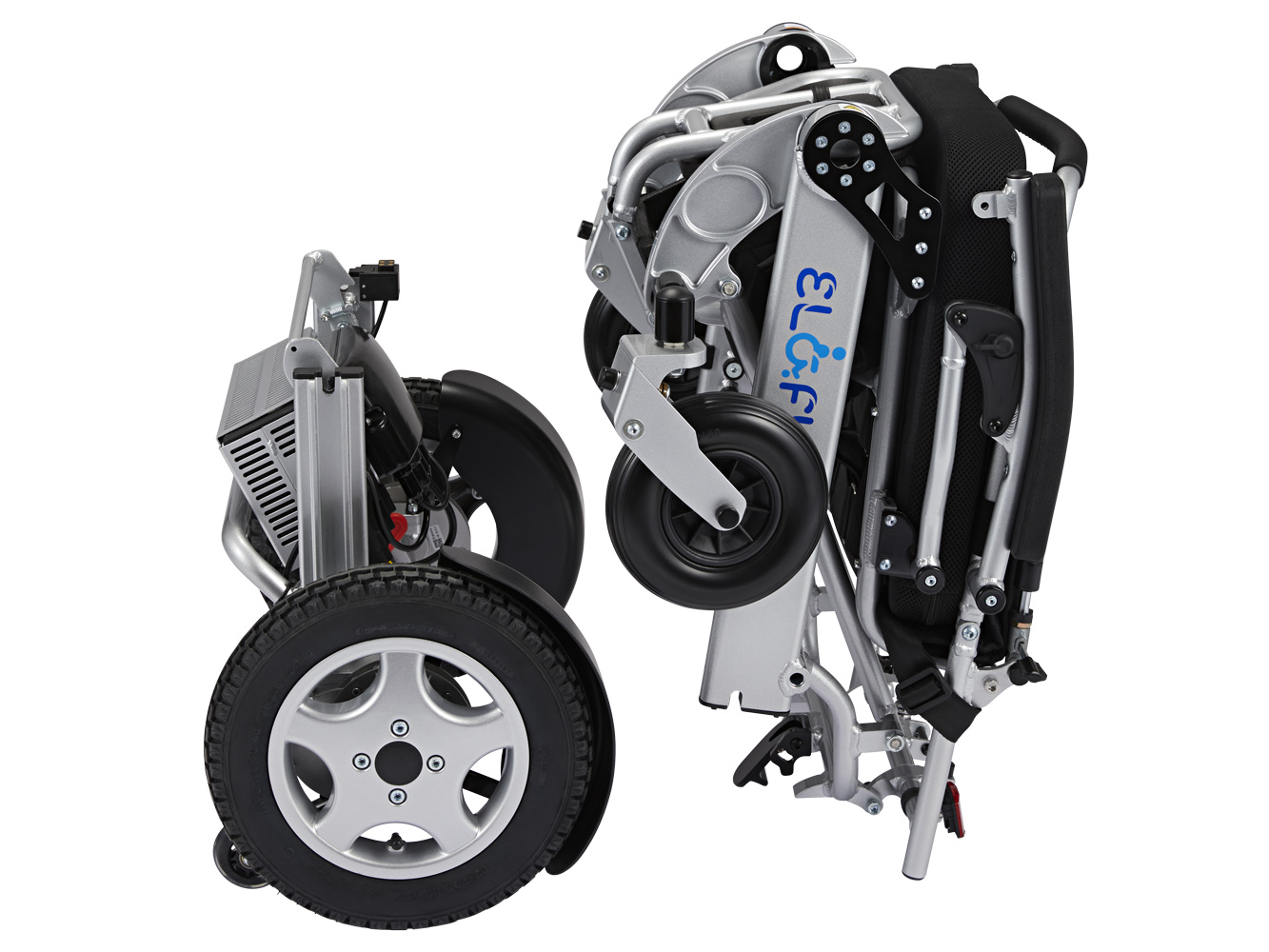

DIVIDIBLE WHEN LOADING
Eloflex D2 can be divided into two parts to quickly and easily lift the power wheelchair into the trunk of a car. It provides easier handling than with an entire wheelchair as the load weight is only 15.6 and 17.1 kg respectively.

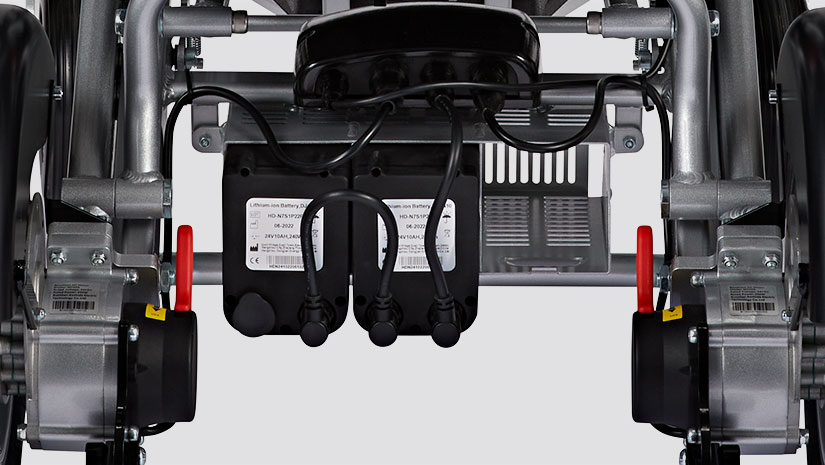

EXTRA BATTERY

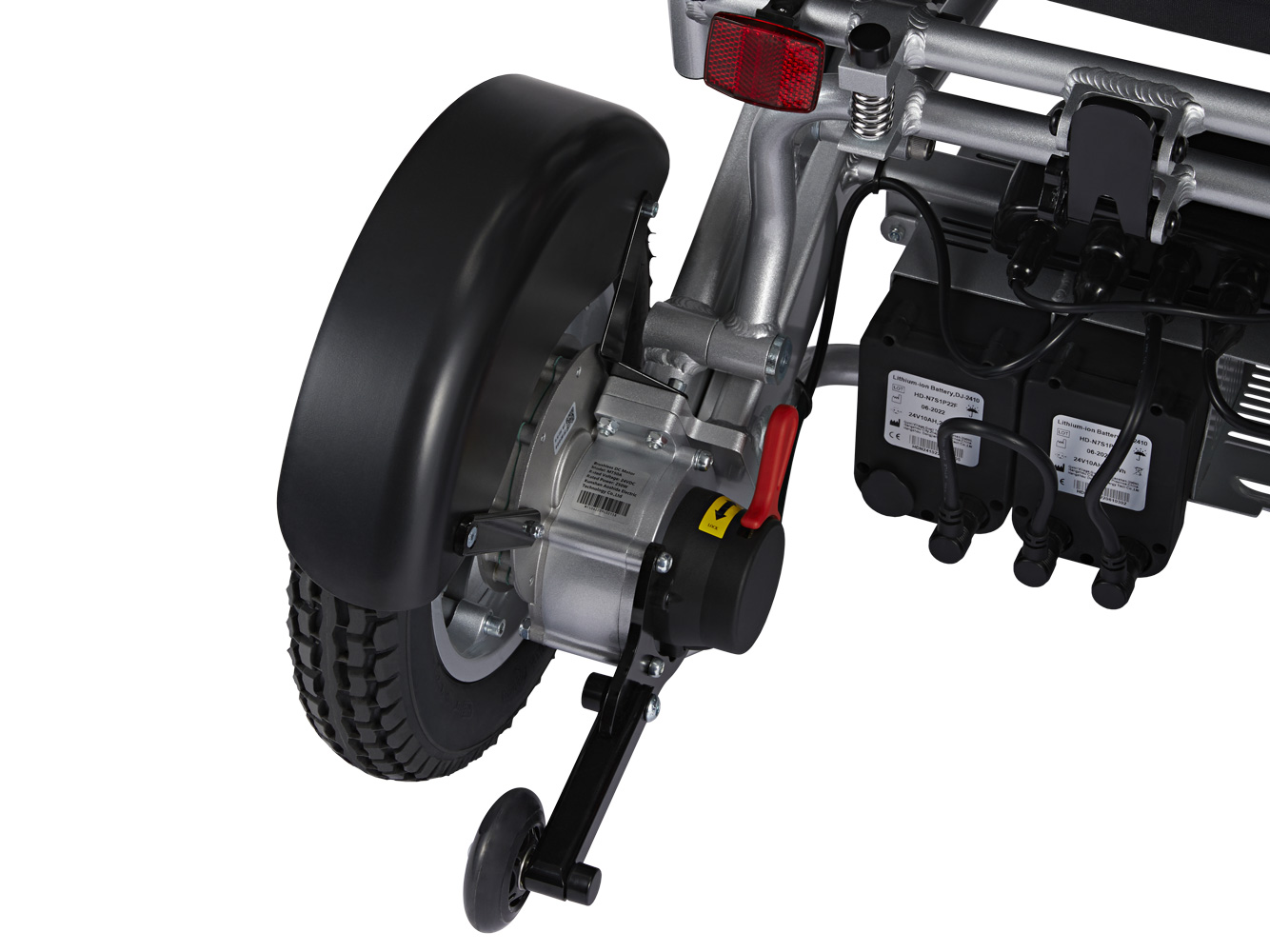

Model D2 is equipped with a third and extra battery compartment. The user can buy a third battery, which means 50% longer mileage. Now you can drive up to 45 km on a single charge.

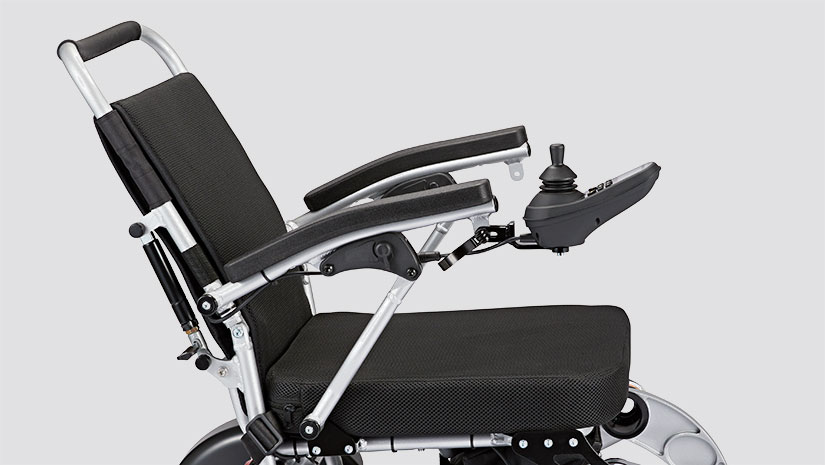

FOLDING JOYSTICK
The D2 has a smart attachment to the joystick that allows you to fold down the joystick with a simple touch. With this advantage you can get closer to a table or reduce the space when loading or storing the wheelchair.

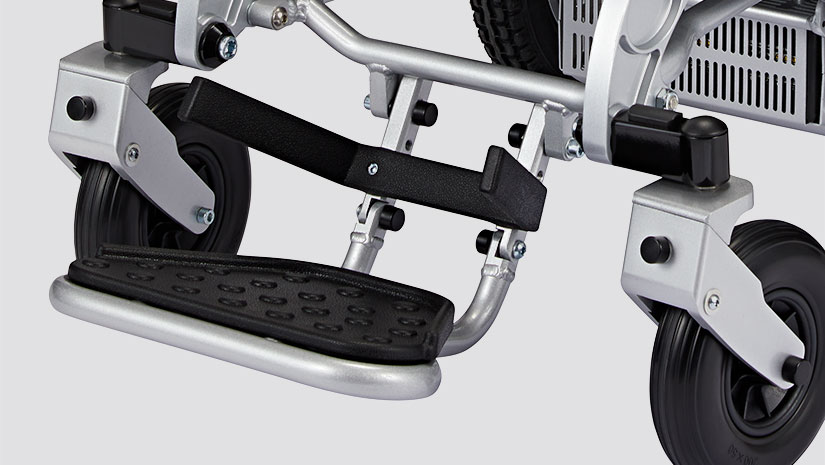

SPRING DAMPING IN THE FRONT
Model D2 is equipped with shock-absorbing castor forks. This means that you get an even more comfortable and smoother driving experience. Together with the air-filled rear tires, this provides good comfort and good cushioning.

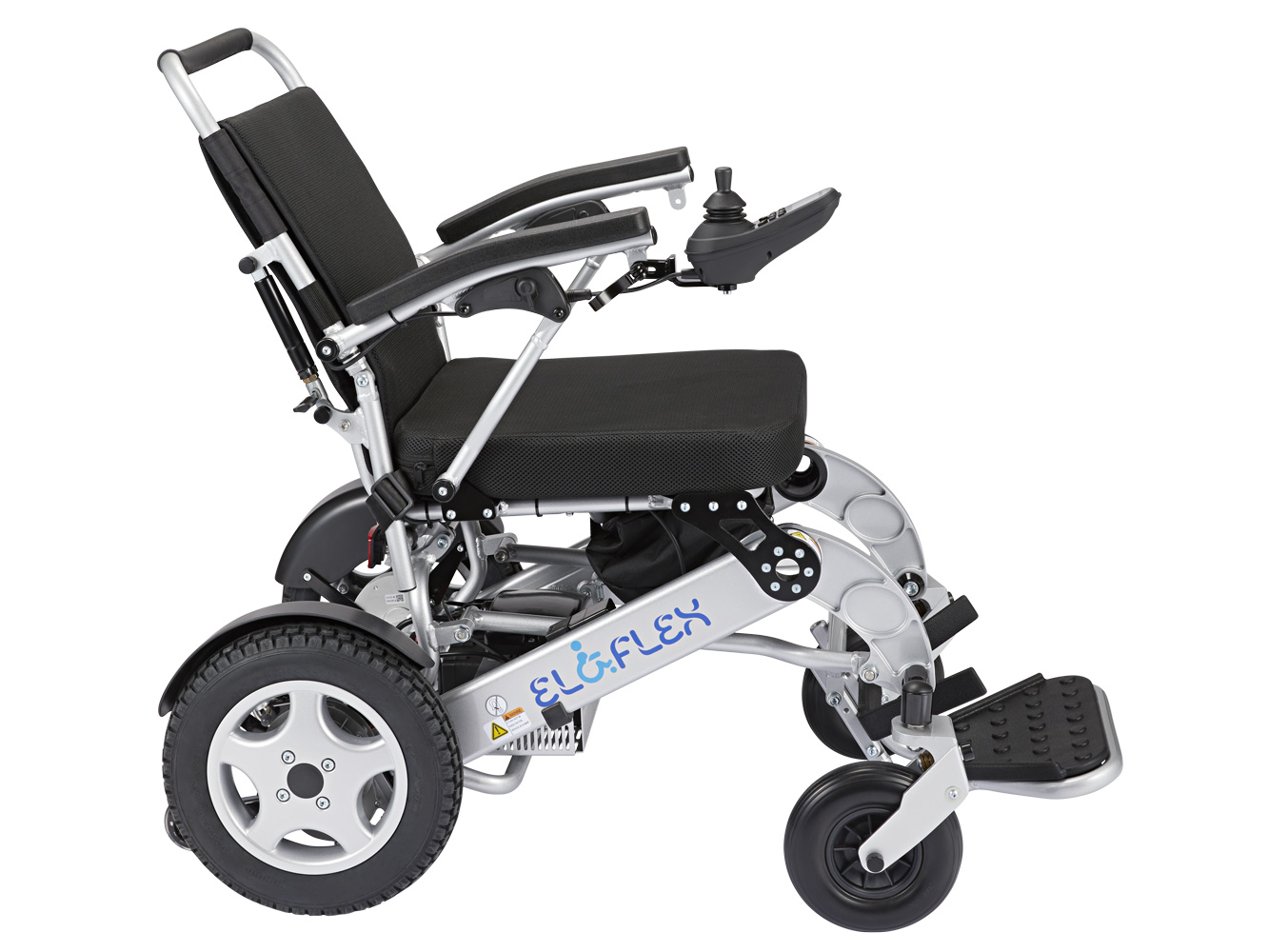

ADJUSTABLE BACKREST
Model D2 has a height-adjustable backrest that can also be angled, which provides maximum comfort for both short and tall users. The backrest cover can also be relaxed or tightened with Velcro.
Technical specifications
TOTAL WEIGHT = 32,5 kg
LOADING WEIGHT = 14+16 kg
SPEED = 6,5 km/h
RANGE = 30 km
MOTOR = 2 x brushless motors
BATTERY = 2 x Lithium ION 10 AH / 24 V
BATTERY WEIGHT = 1,6 kg
CHARGING TIME = 3 hours
EFFECT = 2 x 250 Watt
TURNING RADIATION = 89 cm
WHEELS = 8″ front (solid) / 12″ rear (air)
SEAT HEIGHT = 50 cm
SEAT WIDTH = 45/50/55 cm
SEAT DEPTH = 44-47 cm
MAX LOAD = Max 160 kg
JOYSTICK = right, left or backrest
CUSHION = removable
BACKREST = adjustable
SIZE = 96 cm (H) x 62 cm (W) x 107 cm (D)
SIZE FOLDABLE = 76 cm (H) x 62 cm (B) x 50 cm (D)
WARRANTY = 2 year
Video model : D2
Images model : D2
Accessories model : F
Attendant Control
The care control is an arm and a bracket which means that you can mount the joystick on the backrest of your Eloflex. With the care control, the person who is behind can drive the electric wheelchair with the help of the joystick instead of the person sitting in the chair. A perfect solution for older users and for certain medical conditions.
Headrest
The headrest makes your Eloflex more personalized and useful, even for those users who need some extra support for the head and neck. The headrest has large adjustment possibilities and can be adapted to each individual needs thanks to the smart attachment. With a headrest on your Eloflex you get a comfortable sitting and driving position.
Protective bag
The bag is the perfect accessory for those who want to be a little extra careful of your Eloflex when transporting, when checking in on a flight or loading the chair in the car. The bag is black and made of durable nylon fabric. You put the bag over the Eloflex when you have the chair folded and attach it under the chair with the buckles. There are two handles on the bag.
FOOTREST EXTENSION
Do you have long legs? Then you can equip your Eloflex with an adjustable footrest extension. The footrest extension is an extra long attachment that replaces the regular bracket on your footrest and increases the distance between the cushion and the footplate. This is a practical solution for those with long legs as the sitting position becomes more correct and enables better posture, and will therefore be more comfortable.
