FOLDABLE IN 2 SEC

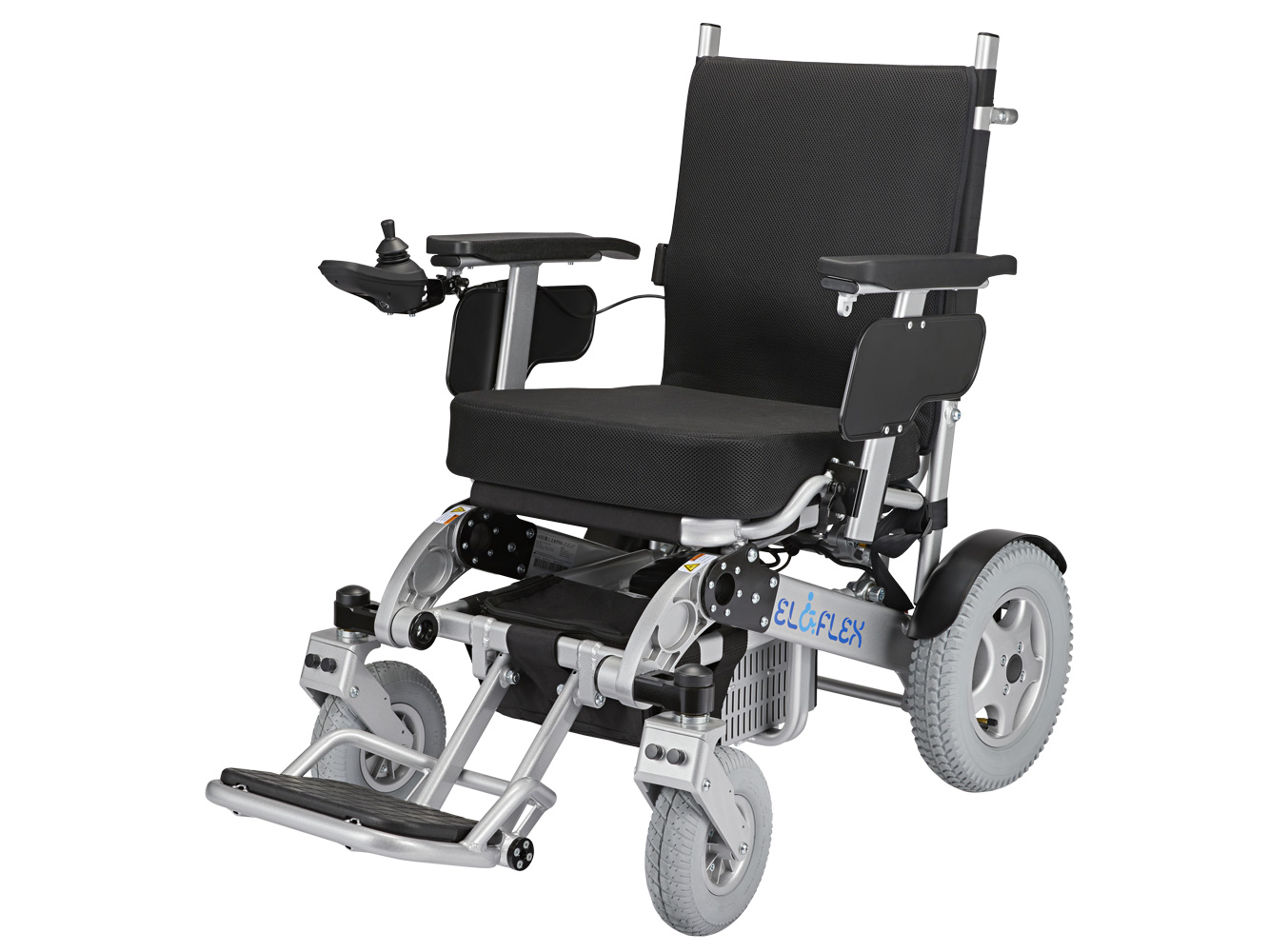

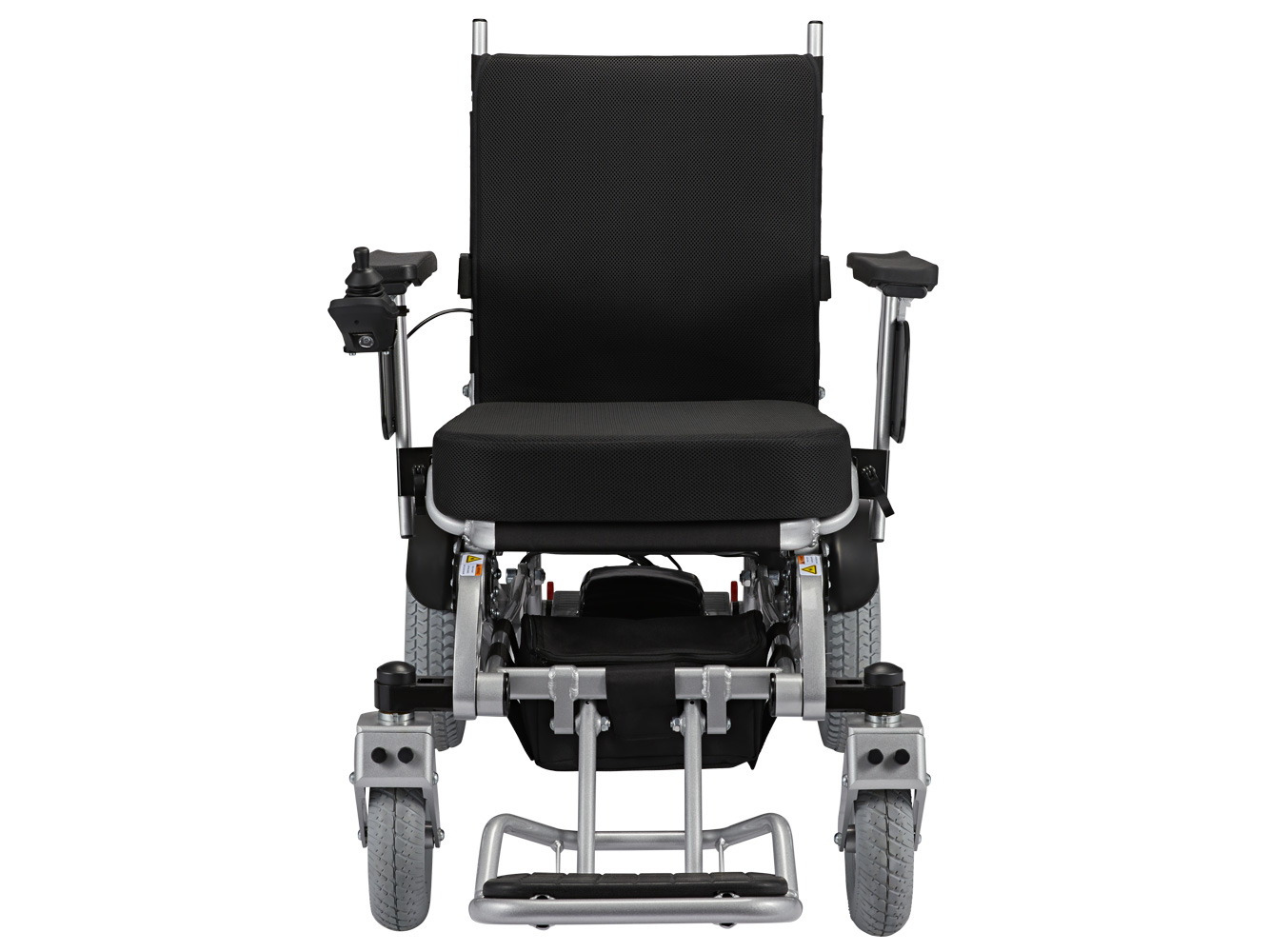

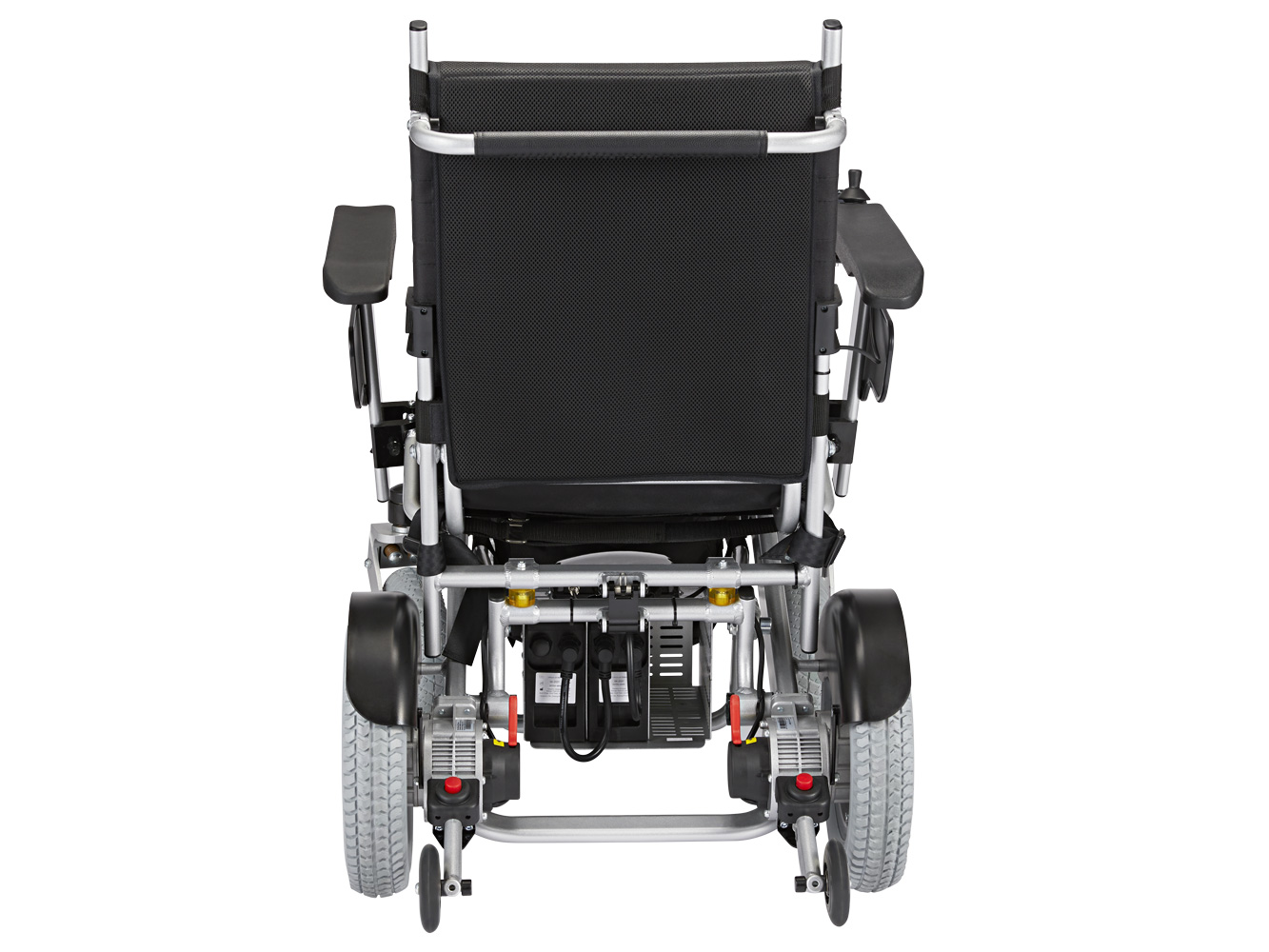

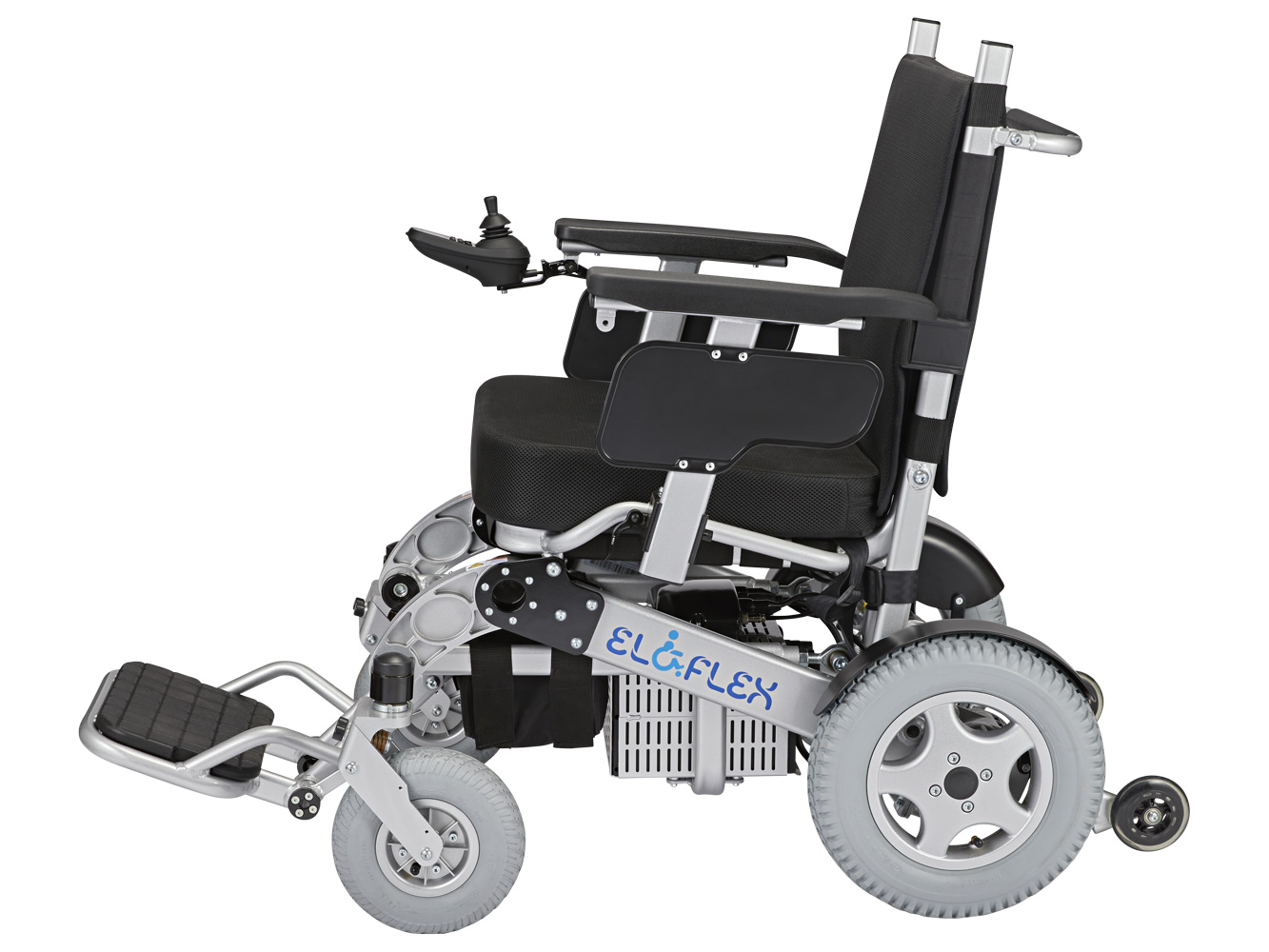

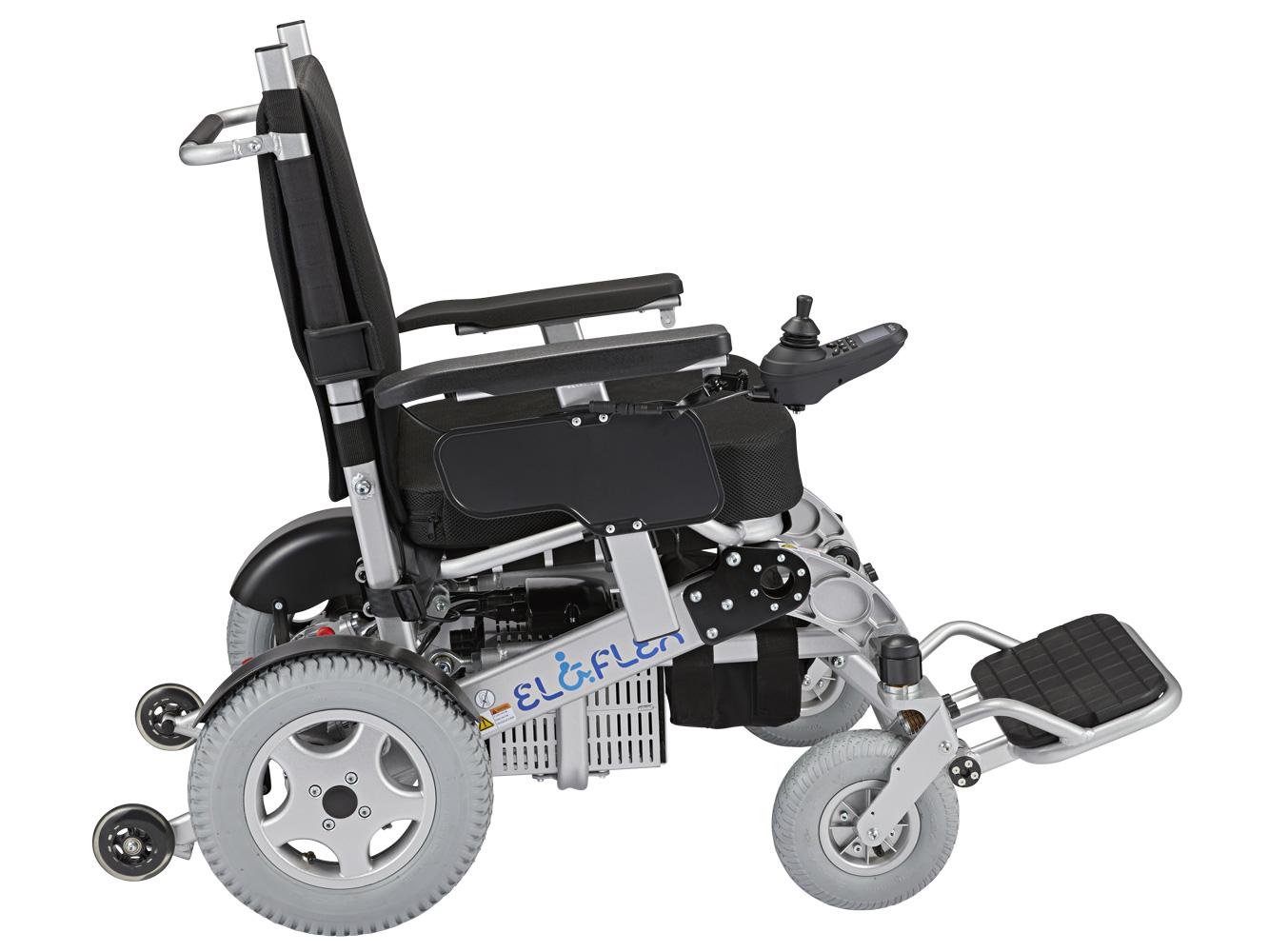

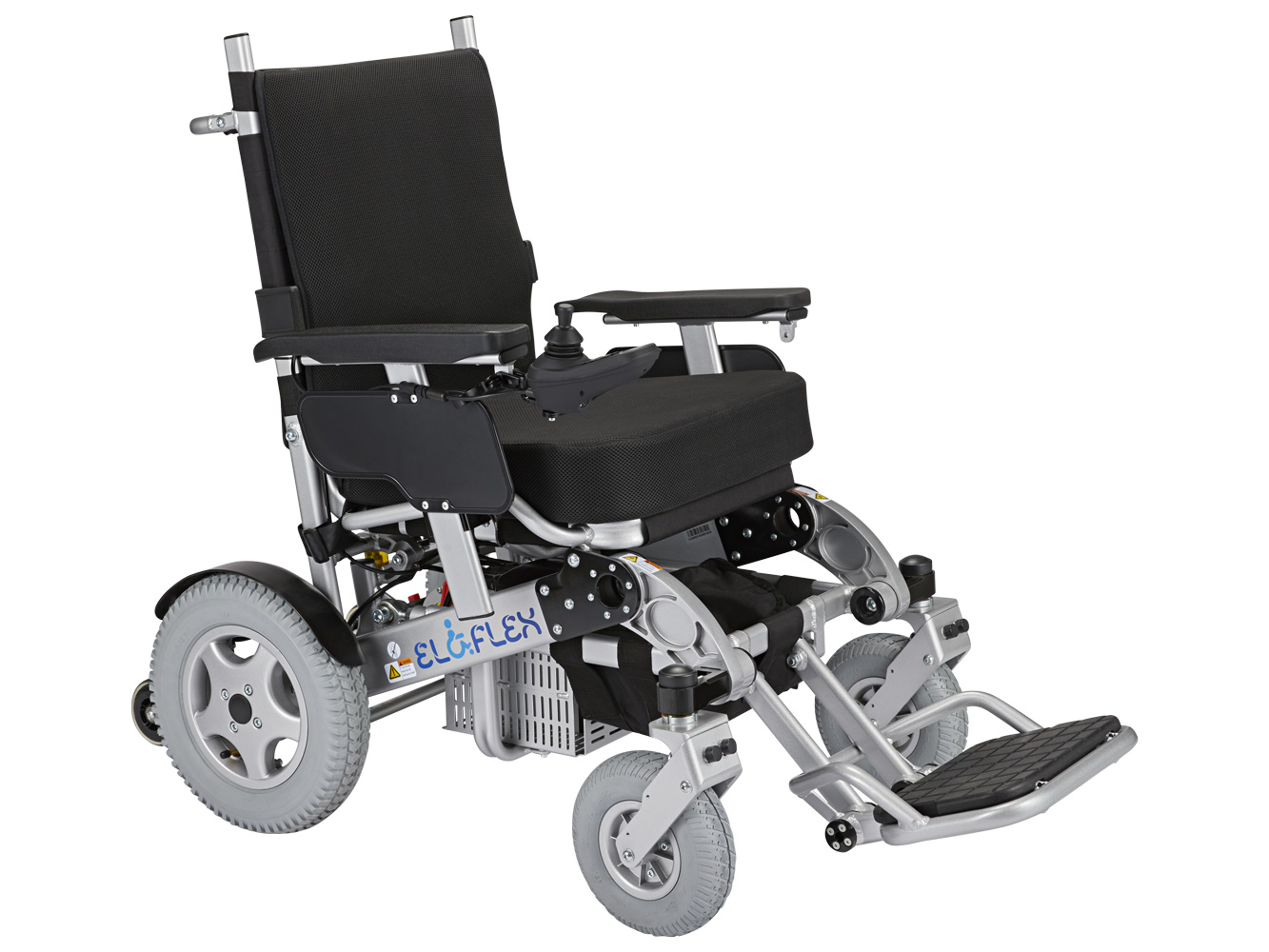

Eloflex Model : H
Eloflex H is proof that nothing is impossible with electric wheelchairs. It combines the power, comfort and support required to accommodate users weighing up to 200 kg in a single foldable wheelchair that fits into a regular car. Model H is a spacious chair with ample room for a larger people. Wide and comfy seats, which are high enough to support taller people, ensure a flexible and comfortable driving position over longer periods.
Model H is a masterpiece of design and engineering quality. Maximum durability and a robust design make this model our easiest chair to get around in. Equipped with four large and powerful tires, extra-powerful motors and batteries that are twice as powerful, it offers superior performance and allows user to navigate even the most uneven surfaces – also ideal if you live in the countryside.
Key features include dual suspension, extra-large footplates, four air-filled tires, adjustable armrests, a comfortable seat cushion and space for up to three batteries.
43
WEIGHT IN KG
40
RANGE IN KM
54
SEAT HEIGHT IN CM
200
MAX LOAD IN KG
400
EFFECT IN WATT
UNIQUE FEATURES
Twin suspension
The driving characteristics of model H are superior, even on uneven surfaces. One of the secrets is the twin suspension on the front fork, which absorbs shocks in turns, offering excellent stability and driving comfort.
Seating comfort

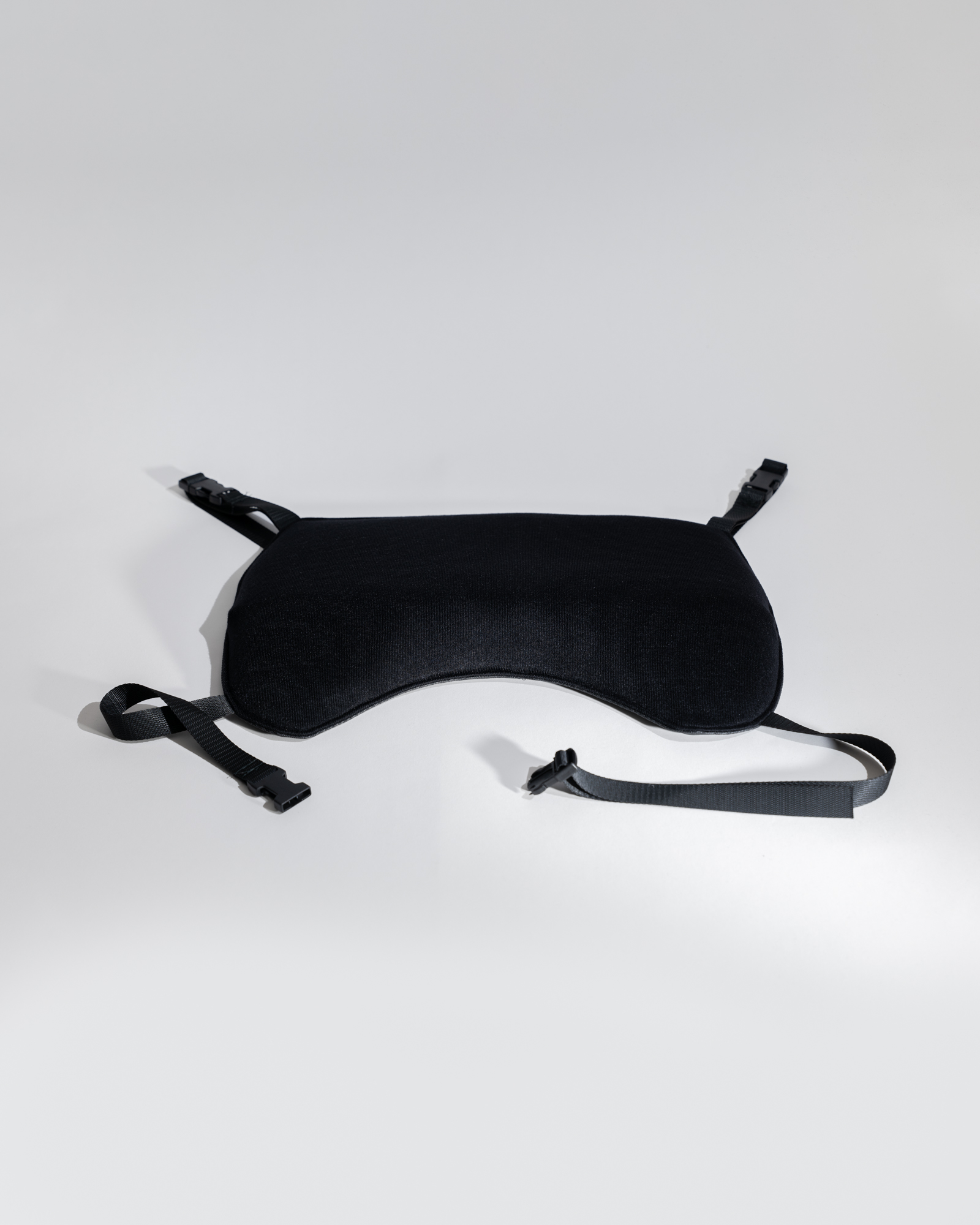

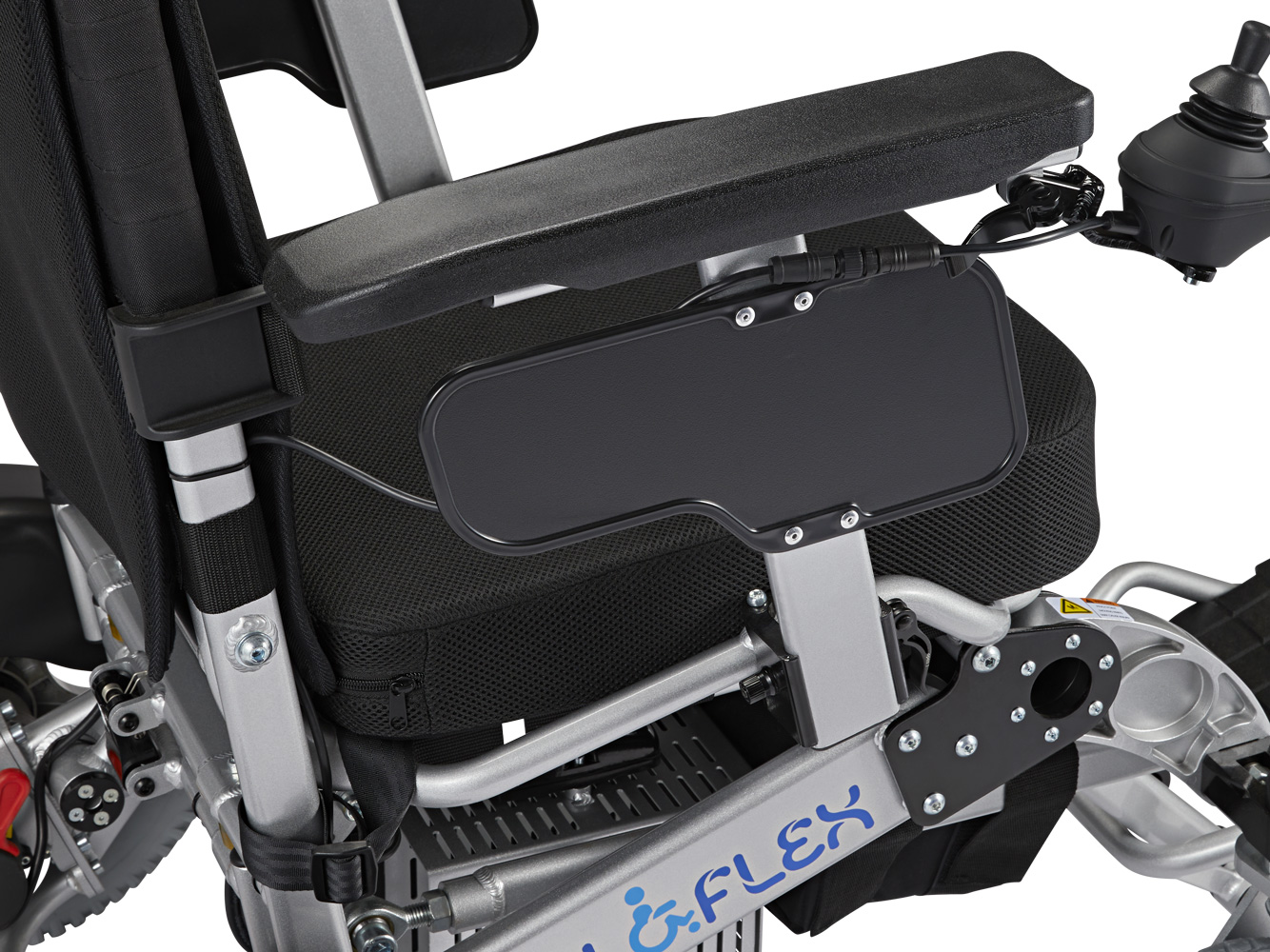

For superior seating comfort, our H model is equipped with an adjustable backrest and a lumbar support pad that can be adjusted separately to support the lower back. Armrests are also adjustable and the seat cushion is extra thick, firm and comfortable.
Safety
Because safety is a top priority, model H has been equipped with smart, powerful anti-tippers that can be folded in during transport. You’ll also find an adjustable seat belt to keep users in place.

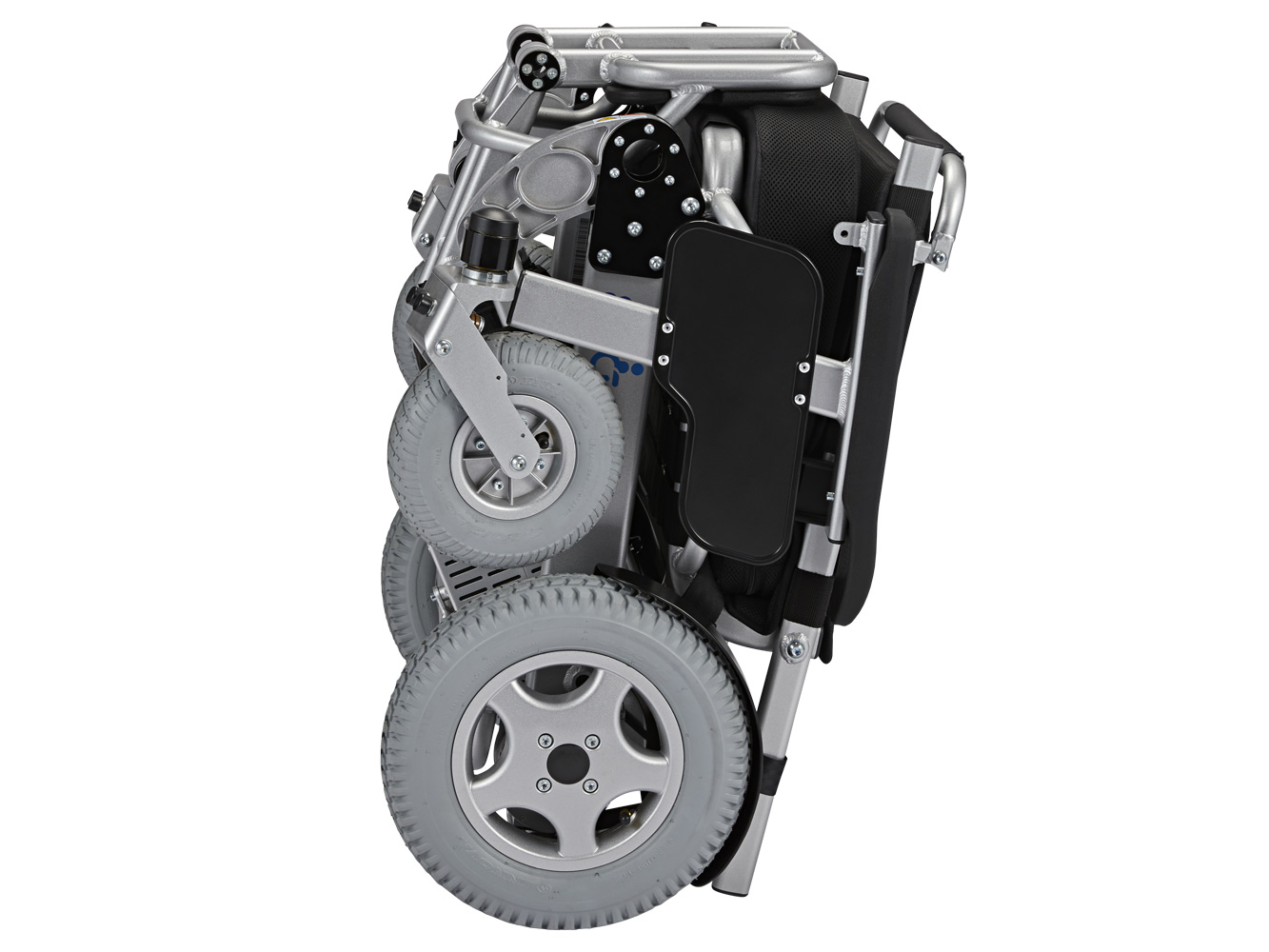

Foldability
A compact, foldable electric wheelchair that can handle users weighing up to 200 kg is something truly unique. Weighing less than 40 kg, you can easily stow and transport it in a regular car. The slim, flexible design also makes easy to navigate into and out of tight spaces.

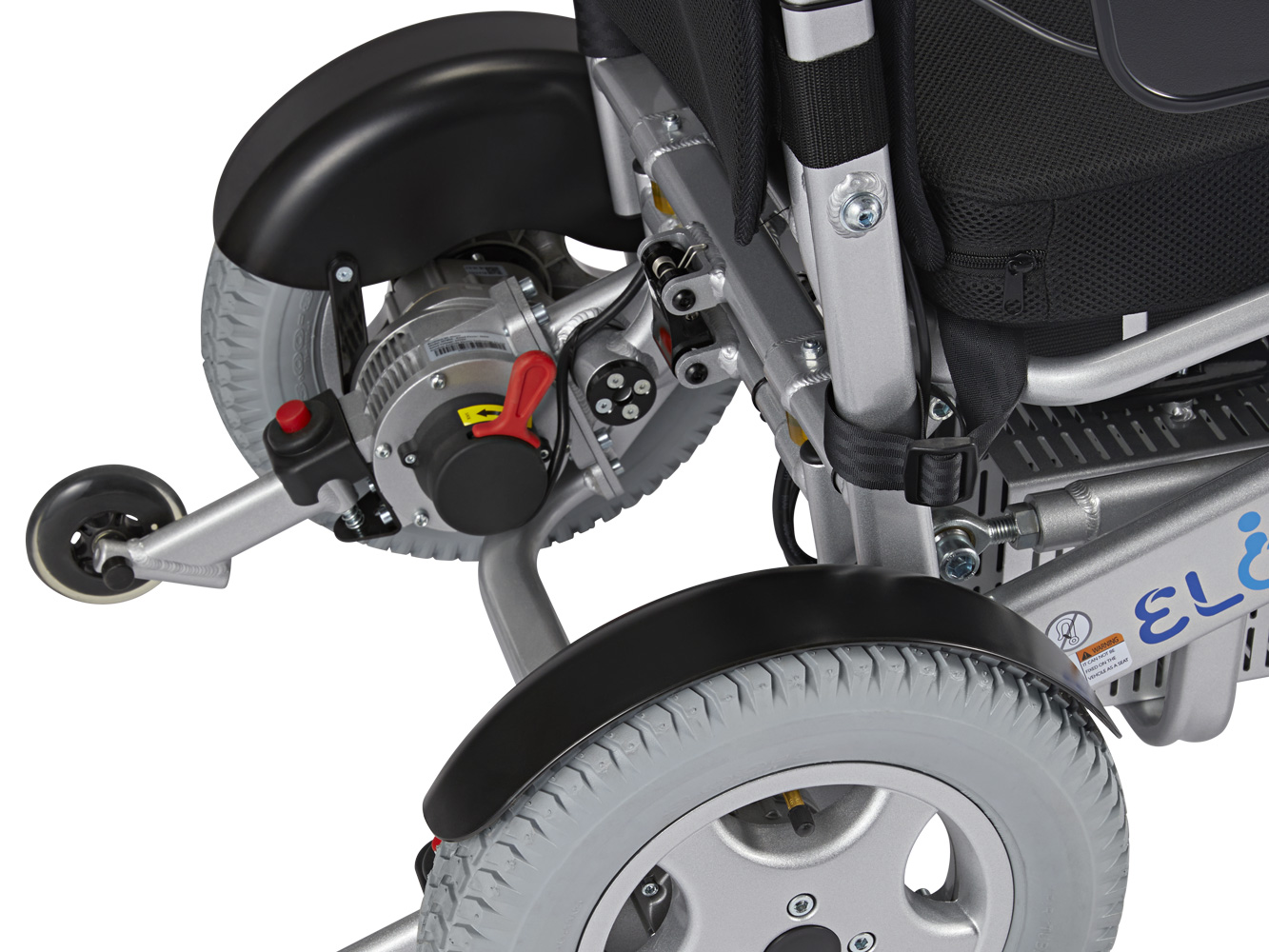

Powerful motors

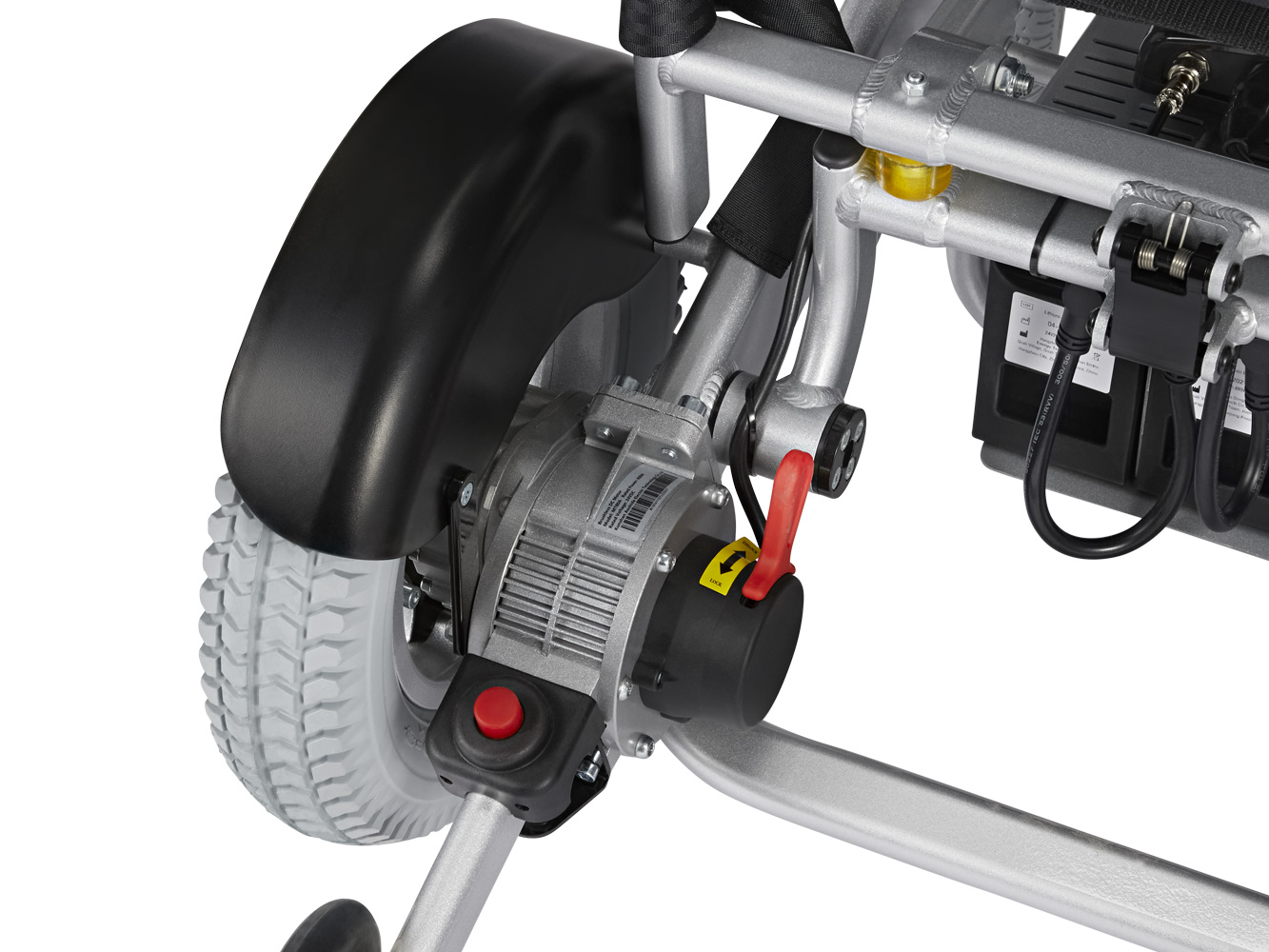

Model H is equipped with two of our most powerful 400-watt engines. Featuring state-of-the-art brushless technology, they are more powerful than brushed motors, draw less power and enable lighter weight. The added power provides better accessibility, longer range and a better driving experience.
Long range

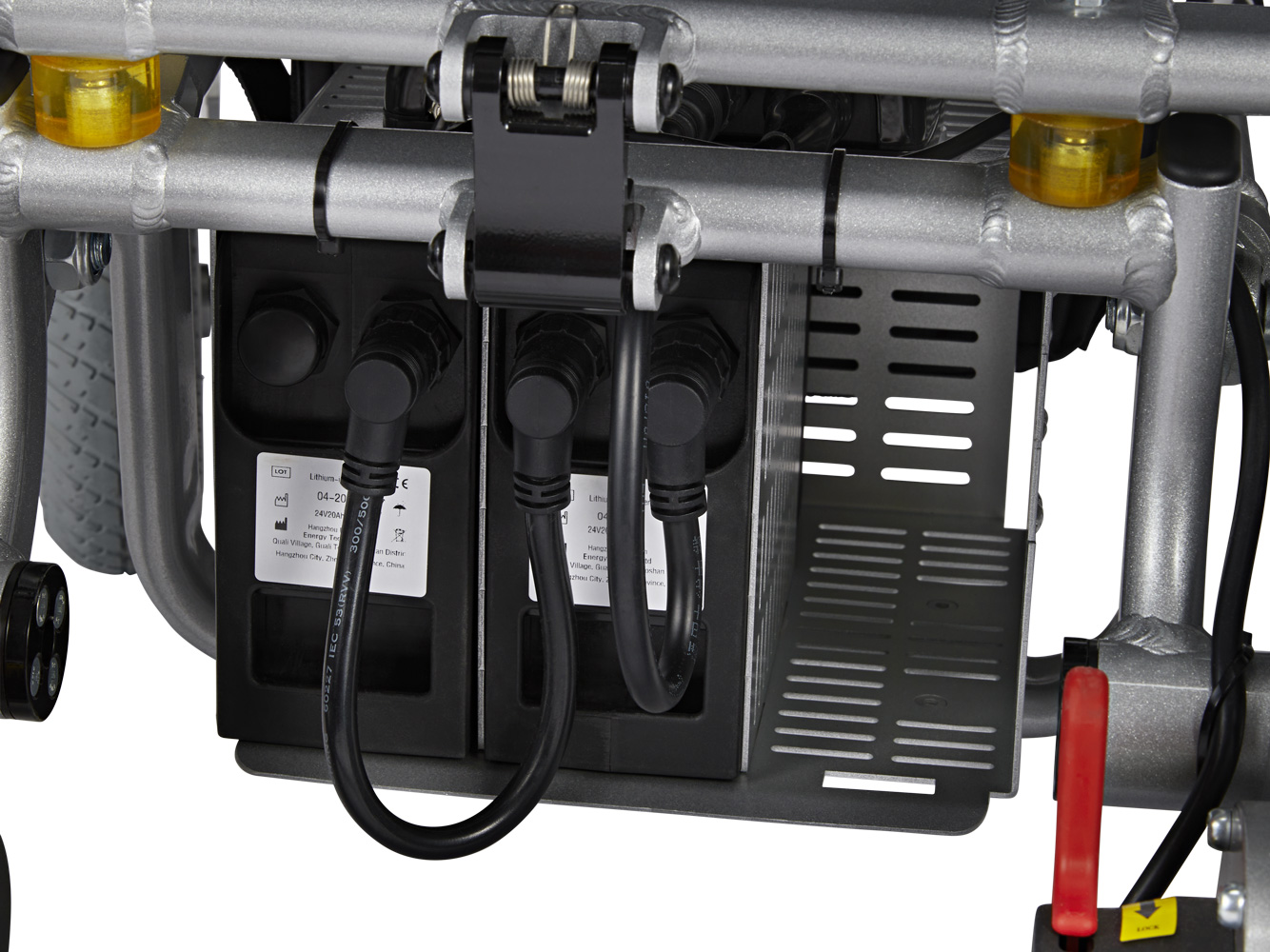

Two rechargeable batteries are included as standard on all Eloflex electric wheelchairs. The dual power gives you over 25 km range on a single charge. There is also room for a third battery, which can extend your range to over 35 km.
Powerful wheels
This model comes with four wide, heavy duty air-filled wheels that provide superior grip and accessibility, regardless of the surface. The wider wheels also give you a more comfortable driving experience on uneven surfaces like gravel roads and cobblestones.
Spacious
Model H is our most spacious chair with plenty of space for people who are a little wider or taller. Maximum comfort is also provided through adjustable armrests, a solid footplate, generous seating height and an extra-high backrest.
Technical specifications
WEIGHT = 43 kg
TOTAL WEIGHT = 49,5 kg
SPEED = 8 km/h
RANGE = 40 km with a weight of 100kg, 30 km with a weight of 200 kg
MOTOR = 2 x brushless motors
BATTERY = 2 x Lithium ION 20 AH / 24 V
BATTERY WEIGHT = 3,2 kg
CHARGING TIME = 5 hours
EFFECT = 2 x 400 Watt
TURNING RADIATION = 99 cm
WHEELS = 9″ front (air) / 13″ rear (air)
SEAT HEIGHT = 54 cm
SEAT WIDTH = 51 cm
SEAT DEPTH = 51 cm
MAX LOAD = Max 200 kg
JOYSTICK = right, left or backrest
CUSHION = removable
BACKREST = adjustable
SIZE = 103 cm (H) x 66 cm (W) x 115 cm (D)
SIZE FOLDABLE = 83 cm (H) x 66 cm (W) x 45 cm
GARANTIE = 2 year
Video model : H
Images model : H
Accessories model : L-Plus
Attendant Control
The care control is an arm and a bracket which means that you can mount the joystick on the backrest of your Eloflex. With the care control, the person who is behind can drive the electric wheelchair with the help of the joystick instead of the person sitting in the chair. A perfect solution for older users and for certain medical conditions.
Headrest
The headrest makes your Eloflex more personalized and useful, even for those users who need some extra support for the head and neck. The headrest has large adjustment possibilities and can be adapted to each individual needs thanks to the smart attachment. With a headrest on your Eloflex you get a comfortable sitting and driving position.
Eloflex A – Attendant Control
Eloflex A is an attendant control that is specially developed for Eloflex power wheelchairs. The caregiver easily controls the power wheelchair without in a safe and comfortable way with the attendant control switched on. The attendant control consists of a new joystick, two handles and a thumb joystick for the person walking behind the wheelchair.
